TWO NOTES
TORPEDO CAPTOR X +

For Tupe Amp Lovers

A premium, compact reactive load box an more

Playing your tube amp in a room with great acoustics, an exceptional selection of perfectly matched speaker cabinets, and a high-quality microphone is a joyful experience like no other. The Torpedo Captor X + is for tube amp enthusiasts who want this experience every time they play, regardless of the environment.

The compact solution to your amp beging too loud

Topredo Captor X

Play your amp at its optimal volume and control it with the attenuator. The digital load box allows you to enjoy your 100-watt rig in silence via headphones. It's plug-and-play.

Topredo Captor X

Are you fed up with lifting heavy cabinets, inconsistent sound, and stage volume issues? Go directly to the PA or audio interface with DynIR, Two Notes' acclaimed cab sim technology.

Captor X +

Effortlessly control the miking chain

Topredo Captor X

Do you want to explore the legendary selection of speaker boxes and microphones? Use Torpedo Remote to pair the Torpedo Captor X + with your phone, tablet, or computer.

Topredo Captor X

No other compact reactive load box offers such universal control of the microphone chain. With two microphones per cabinet, there's no need for a real microphone.

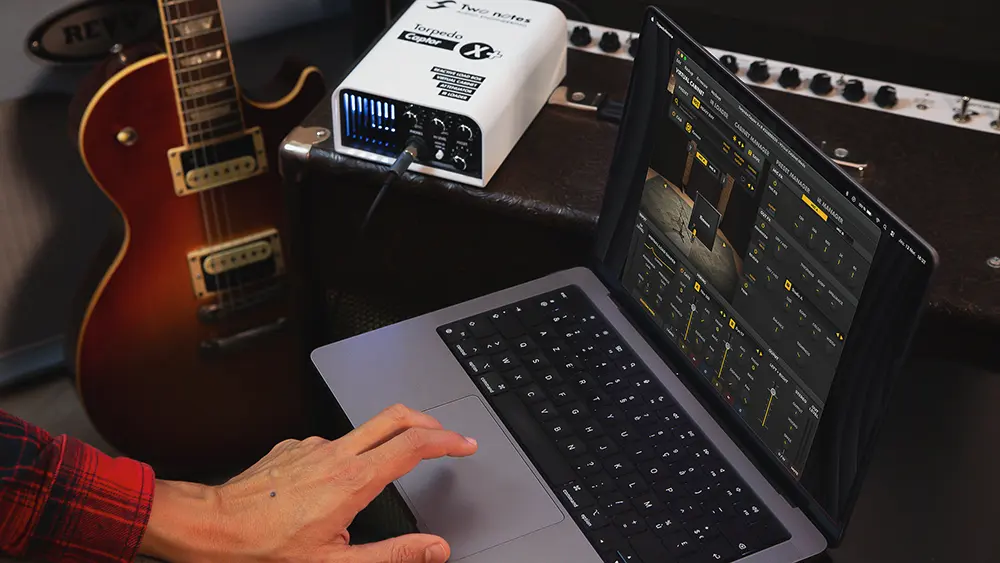

Captor X + record

Two XLR outputs – three possibilites

Topredo Captor X

Enjoy the stereo experience at home, but in live situations or studios, you may want to route the outputs differently. Enable dual mono routing to send different signals to your front-of-house (FOH) and monitors.

Topredo Captor X

Would you like to adjust the tone after recording your killer riff? Enable dry/wet routing to send your cabin signal and dry amplifier signal independently to your audio interface.

Studio grade effects

The Torpedo Captor X + brings studio-quality processing to the Torpedo Captor family. It includes a Twin Tracker, a Stereo Reverb, an Enhancer, and a Voicing.

g

Enhancer

Sometimes, you need a little magic to achieve your desired sound. The Enhancer is a combination of dynamic and tone modeling tools adapted for your guitar or bass. It emphasizes the bass and treble of the tone with its thickness and brightness, respectively. The body makes your tone more complete and present.

Voicing

Voicing is a quick way to adjust the overall sound of all your presets. It can be useful for quickly adapting your sound to the venue or session. Move the slider to the left to emphasize the medium frequencies and cut through the mix better, or move it to the right for a wider, more modern tone.

Two Notes Audio Engineering Torpedo Captor X +

Torpedo Captor X + is a compact reactive load box, tube amp attenuator, miked cab simulator, IR loader and stereo expander for home, live and studio use.

Torpedo Captor X Back
A - Power the unit with the supplied adapter
B - Send Stereo, Dual Mono or Dry/Wet signals through the XLR DI outputs.
C - Ground lift
D - Fan
E - Connect the supplied ⅛” jack to MIDI cable adapter for MIDI control.
F - Control Torpedo Captor X from a computer (Windows or macOS) via Torpedo Remote. USB cable supplied
G - Speaker Out
H - Choose your cabinet volume level:Low position is Home level. Halfway position is Club level. Full position is Stadium level
I -  Connect your amplifier’s output here with a ¼” jack speaker cable (8 Ohms output, 100W RMS max admissible power)

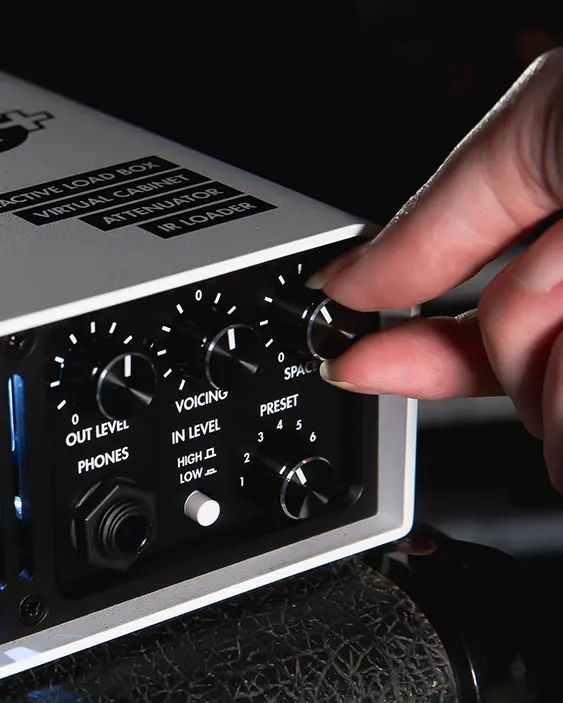

Torpedo Captor X Front
1 - Metering für In- und Outputs (Rot = Übersteuert)
2 - Regler für Kopfhörerpegel und XLR DI Ausgänge.
3 - Globale Klangbeeinflussung
4 - Mehr Raum (Stereo Effekt) für Kopfhörer- und XLR DI Ausgänge.
5 - Bitte achte das die Schlitze immer frei sind um die Kühlung zu gewährleisten
6 - Kopfhöreranschluss.
7 - Eingangspegel.
8 - Schnelles Umschalten zwischen Deinen bevorzugten Presets

Der Torpedo-Captor X + (16 oder 8 Ohm Variante) kommt mit einer Auswahl von 32 Cabinets und vielem mehr.
